Analyze Temporal Patterns in Binary Raster Time Series

Source: R/analyze_temporal_patterns.R
analyze_temporal_patterns.Rd

Postprocessing function that applies changepoint detection methods to identify temporal trends in habitat suitability across consecutive predictions. Classifies pixels as stable, increasing in quality, or decreasing in quality, and identifies time periods of significant change.

Usage

analyze_temporal_patterns(
  binary_stack,
  summary_raster,
  time_steps,
  fastcpd_params = list(),
  output_dir = NULL,
  n_tiles_x = 1,
  n_tiles_y = 1,
  alpha = 0.05,
  spatial_autocorrelation = TRUE,
  verbose = TRUE,
  estimate_time = TRUE,
  overwrite = FALSE
)

Arguments

binary_stack

RasterStack, RasterBrick, or character. Stack of binary raster layers across time, or path to directory containing binary rasters. Typically from summarize_raster_outputs.

summary_raster

RasterLayer. Per-pixel proportion of time periods where a pixel is suitable. From summarize_raster_outputs.

time_steps

Integer vector. Time labels corresponding to raster layers (same length as number of layers).

fastcpd_params

List. Named list of parameters passed to fastcpd changepoint detection function. Default is empty list. Supports parameterization from fastcpd_binomial.

output_dir

Character. Optional. Output directory for pattern rasters. When NULL (default), rasters are written to temporary files and not saved persistently. Provide a path to write named output files to disk.

n_tiles_x

Integer. Number of tiles in the x direction for tiled processing. Default is 1. Increase to reduce peak memory use for large rasters and prevent crashes.

n_tiles_y

Integer. Number of tiles in the y direction for tiled processing. Default is 1. Increase to reduce peak memory use for large rasters and prevent crashes.

alpha

Numeric. Significance level for changepoint detection. Default is 0.05.

spatial_autocorrelation

Logical. If TRUE (default), includes a neighbor variable in the changepoint analysis to account for spatial autocorrelation.

verbose

Logical. If TRUE (default), prints progress messages during processing.

estimate_time

Logical. If TRUE (default), estimates runtime from a sample of pixels before full processing begins. If FALSE, proceeds directly to processing without a time estimate.

overwrite

Logical. If TRUE, overwrites existing output files. If FALSE (default), existing files are skipped.

Value

Invisibly returns a list containing:

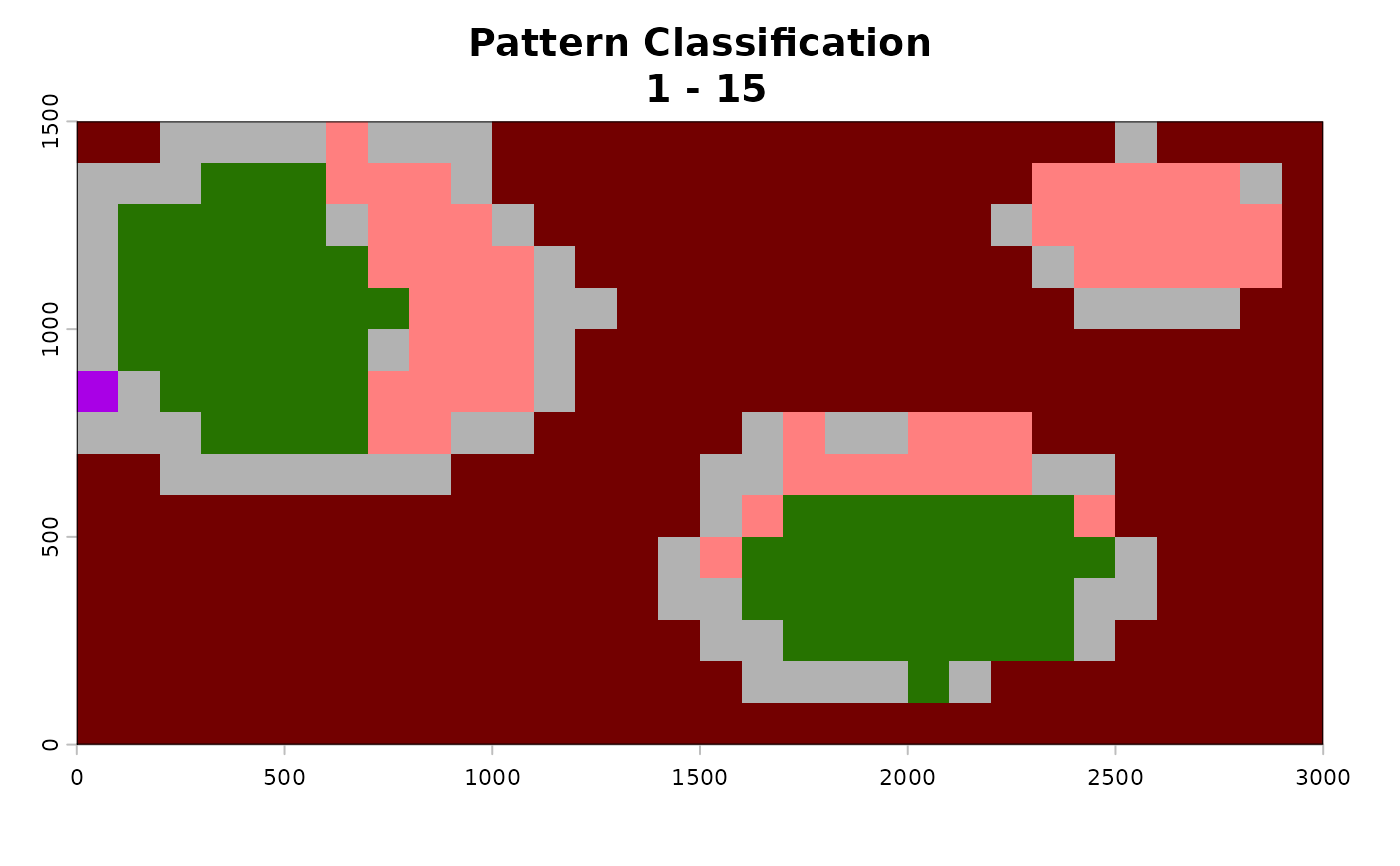

  • pattern: SpatRaster classifying pixels as integer values 1-6, corresponding to "Never Suitable", "Always Suitable", "No Pattern", "Increasing Suitability", "Decreasing Suitability", or "Fluctuating".

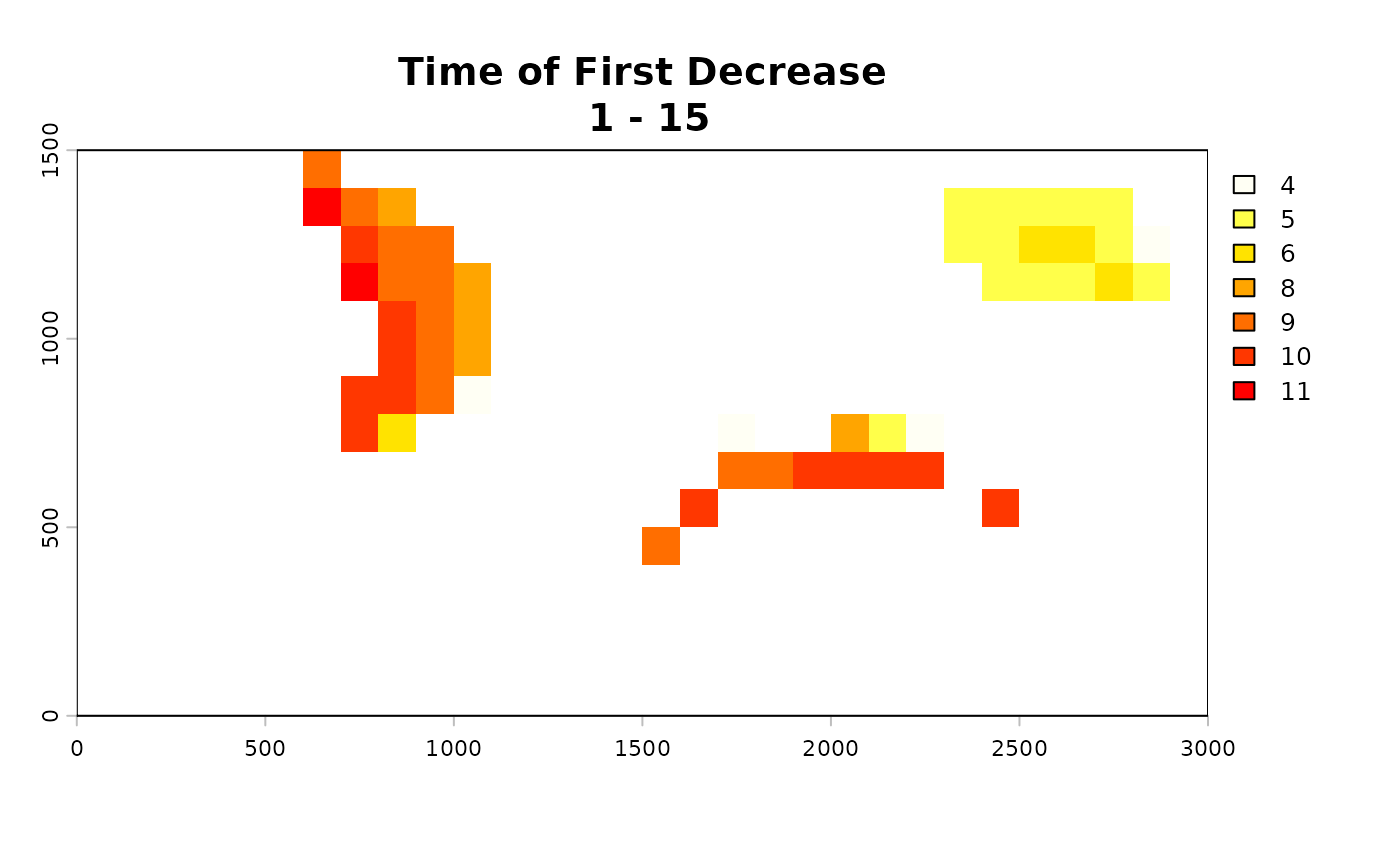

  • time_decrease: SpatRaster showing the time step of first significant decrease for pixels classified as decreasing.

  • time_increase: SpatRaster showing the time step of first significant increase for pixels classified as increasing.

Details

Applies changepoint detection using fastcpd to identify significant temporal shifts in spatial suitability. Accounts for spatial and temporal autocorrelation when spatial_autocorrelation = TRUE. The fastcpd_params list allows customization of the changepoint detection algorithm, and is passed through to fastcpd.binomial (e.g. list(cost_adjustment = "BIC", trim = 0.025)).

Pattern classifications enable identification of expanding, contracting, or stable g-space distributions over time or site level assessments of directional change in suitability.

Classification assumes consecutive rasters. Time periods shorter than ~15 time steps may be too short to classify increases or decreases.

See also

Postprocessing: summarize_raster_outputs

External: fastcpd

Examples

# \donttest{
  con_file <- system.file("extdata/binary/consensus_stack.tif",
                          package = "TemporalModelR")

  frq_file <- system.file("extdata/binary/frequency_raster.tif",
                          package = "TemporalModelR")

  binary_stack   <- terra::rast(con_file)

  summary_raster <- terra::rast(frq_file)

  time_steps <- expand.grid(
    year             = 1:15,
    season           = "Spring",
    stringsAsFactors = FALSE
  )

  analyze_temporal_patterns(
    binary_stack            = binary_stack,
    summary_raster          = summary_raster,
    time_steps              = time_steps,
    output_dir              = tempdir(),
    spatial_autocorrelation = FALSE,
    overwrite               = TRUE,
    estimate_time           = FALSE,
    verbose                 = FALSE
  )


# }
